Flat 6 Motorsports Cold Air Intake System (Macan 95B.2 / 95B.3)

(No reviews yet) Write a Review
SKU:
Flat -6-Motorsports-2
  • Flat 6 Motorsports Cold Air Intake System (Macan 95B.2 / 95B.3)
  • Flat 6 Motorsports Cold Air Intake System (Macan 95B.2 / 95B.3)
  • Flat 6 Motorsports Cold Air Intake System (Macan 95B.2 / 95B.3)
  • Flat 6 Motorsports Cold Air Intake System (Macan 95B.2 / 95B.3)
  • Flat 6 Motorsports Cold Air Intake System (Macan 95B.2 / 95B.3)
  • Flat 6 Motorsports Cold Air Intake System (Macan 95B.2 / 95B.3)
  • Flat 6 Motorsports Cold Air Intake System (Macan 95B.2 / 95B.3)
  • Flat 6 Motorsports Cold Air Intake System (Macan 95B.2 / 95B.3)
  • Flat 6 Motorsports Cold Air Intake System (Macan 95B.2 / 95B.3)
  • Flat 6 Motorsports Cold Air Intake System (Macan 95B.2 / 95B.3)
  • Flat 6 Motorsports Cold Air Intake System (Macan 95B.2 / 95B.3)
  • Flat 6 Motorsports Cold Air Intake System (Macan 95B.2 / 95B.3)
  • Flat 6 Motorsports Cold Air Intake System (Macan 95B.2 / 95B.3)
  • Flat 6 Motorsports Cold Air Intake System (Macan 95B.2 / 95B.3)
  • Flat 6 Motorsports Cold Air Intake System (Macan 95B.2 / 95B.3)
  • Flat 6 Motorsports Cold Air Intake System (Macan 95B.2 / 95B.3)
  • Flat 6 Motorsports Cold Air Intake System (Macan 95B.2 / 95B.3)
$439.00
Frequently bought together:

Description

Product Details

The Flat 6 Motorsports Cold Air Intake System is the most advanced engineered intake system available for the facelifted 95B.2 Porsche Macan. Aided by CFD analysis, we optimized the intake air flow, providing a maximum power increase. The open top ducts paired with the bell-horn shape and proprietary filter media creates an optimum surface to distribute air inside the factory airbox to maximize air velocity and flow. This cold air intake system integrates directly to the factory airbox enabling a simple installation and OEM fit & finish.

Features

  • Direct Factory Replacement
  • Significant Flow Rate Enhancement
  • Dyno verified +14.7whp on the Macan S (+24.9whp peak)
  • Dyno verified +6.6whp on the Macan GTS (+13.4whp peak)
  • 1/4 mile verified improvement of .27 sec and 2.2 mph higher trap speed
  • Improved Turbo and Throttle Response
  • Reduces Intake Air Temps (IATs) by 6.3% under full load
  • Tested below 1 micron to ANSI/ASHRAE Standard
  • Nano-Fiber Dry Media Filtration
  • Simple Drop-In Design
  • Easy to Service
  • Made in the USA

Engineered

Porsche provided an excellent cold-air delivery solution by leveraging ducts from the front grill that feeds air up through the hood and down into the airbox. One area they left room for improvement on is the design in which air velocity can be manipulated to increase power. They split the air channels into two runners and placed a duct with a large area in the middle to drive the air flow into two chambers in the airbox. Because of this, they only put two filter surface areas to bring air in. This keeps air pressure high on the outside of the filter but slows the velocity at which air can pass through the filter and into the charge pipe leading to the turbocharger.

After studying and analyzing this design, Flat 6 Motorsports developed a solution that was cost-effective and simple to install and service. The first principle was to increase the air flow in volume and in velocity. We achieved this by opening up the duct that connects to the hood to allow more air flow into the airbox. We then used CFD analysis to optimize the design of the air filter media. Advanced simulation software showed that a bell-horn like design would both maximize filter surface area and most efficiently distribute air flow around the filter which provides 360 degrees of material compared to just 180 degrees on the OEM filter. This design creates high-pressure on the outside of the filter while minimizing pressure drop inside the filter, causing an increase in stable high velocity air that leads to the turbocharger.

Materials

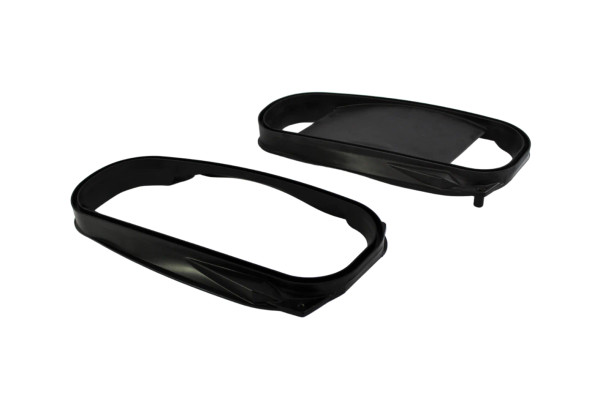

We chose to use the same OEM poly-blend for the replacement ducts to achieve a factory finished look. For the filters, we leveraged a world-class supplier who's industry leading proprietary filter utilizes a dry synthetic multi-layer material. The dry fiber technology enables maximum airflow with minimal pressure drop and efficient filtration.

Installation

Installation is simple for this system which makes any able body the right fit for this DIY job. All that is required is simply removing 4 screws from the OEM duct, removing the OEM filter and replacing it with the Flat 6 Motorsports High Flow Filter & Airbox Panel Plate. Then simply reuse the gasket on the High Flow Intake Duct and bolt down the ducts to the OEM airbox. This job can be done in 5-10 minutes with a T-25 torx bit and flat-head screwdriver. Detailed installation instructions are included with every order.

BROWNELLS TORX® BITS - STAR BITS T25 TORX Bit - Brownells UK

Installation Instructions







 Dyno Plots



MACAN S Macan Intake Dyno 95B.2 - Flat 6 Motorsports

Macan Intake Dyno 95B.2 - Flat 6 Motorsports - Delta

Macan Intake Dyno 95B.2 - Flat 6 Motorsports - Area Under the Curve

MACAN GTS

Flat 6 Motorsports - Macan GTS Intake (95B.2) Dyno

 1/4 Mile Testing - Results

1/4 Mile Testing - Flat 6 Motorsports 95B.2 Macan Intake
