How to Keep the 10L80 Transmission Cooler in a 2021-2026 Tahoe, Yukon & Escalade

How to Keep the 10L80 Transmission Cooler in a 2021-2026 Tahoe, Yukon & Escalade

The GM 10L80 10-speed automatic is used in many 2021-2026 Chevrolet Tahoe, Suburban, GMC Yukon, Yukon XL, Cadillac Escalade, and Escalade ESV models equipped with the 5.3L and 6.2L V8.

For owners who tow, drive in hot climates, have performance modifications, or simply want to improve long-term transmission serviceability, managing transmission temperature is important.

One of the most effective ways to improve 10L80 cooling is to increase both cooler capacity and fluid capacity.

Why Transmission Temperature Matters

Automatic transmission fluid does more than lubricate internal components. It also helps transfer heat and provide hydraulic pressure throughout the transmission.

Higher operating temperatures can become more common when the vehicle is exposed to:

• Towing
• Heavy loads
• Stop and go traffic
• Hot ambient temperatures
• Performance driving
• Increased engine output

Improving the cooling system gives the transmission more ability to manage that heat under demanding conditions.

Upgrade the Factory 10L80 Transmission Cooler

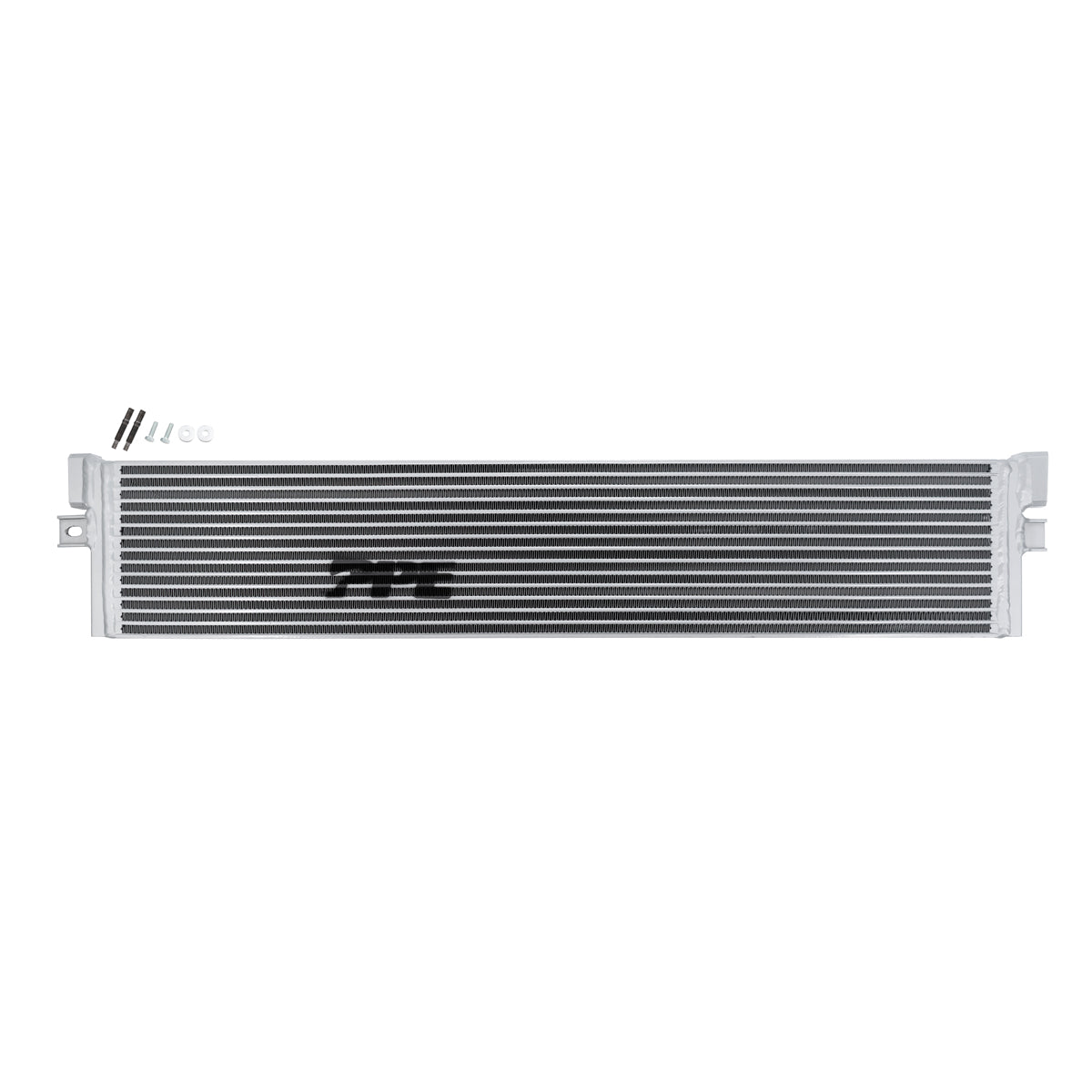

The factory transmission cooler can be upgraded with a larger bar and plate unit such as the PPE 10L80 Transmission Cooler.

PPE’s cooler features a 248 cubic-inch core, approximately 3.25 times the volume of the factory cooler, along with 73% more frontal area.

The larger core and increased surface area allow more heat to be transferred from the transmission fluid into the surrounding airflow.

PPE states that transmission temperatures can be reduced by up to 45°F, depending on driving conditions, ambient temperature, load, and other factors.

For owners who tow boats, campers, or trailers, this can be one of the most valuable cooling upgrades available for the 10L80.

Increase Fluid Capacity With a Deep Aluminum Transmission Pan

The transmission cooler handles heat at the front of the vehicle, while an upgraded transmission pan can improve cooling from underneath.

The PPE Deep Cast Aluminum 10L80 Transmission Pan adds approximately 2.5 quarts of transmission fluid capacity.

More fluid means more thermal capacity, while the aluminum construction and external cooling fins provide additional surface area for heat dissipation.

The PPE pan also includes internal baffling to help control fluid movement and a magnetic drain plug to help capture ferrous particles.

Another benefit is easier future maintenance. Instead of removing a fluid-filled transmission pan every time the transmission is serviced, the integrated drain plug makes fluid changes cleaner and more convenient.

Cooler + Pan: A More Complete 10L80 Cooling Upgrade

Upgrading only the cooler or only the pan can help, but combining both addresses transmission temperature in two different ways.

The larger cooler increases the transmission’s ability to reject heat.

The deeper aluminum pan increases fluid volume and adds additional heat-dissipating surface area.

Together, they create a more complete cooling solution for Tahoe, Suburban, Yukon, and Escalade owners who regularly place additional load on the 10L80.

Service the Transmission While You’re There

Installing a deep transmission pan requires removing the factory pan, making it a good opportunity to replace the transmission filter and gasket at the same time.

A fresh filter helps ensure the transmission is being properly serviced while the cooling upgrades are installed.

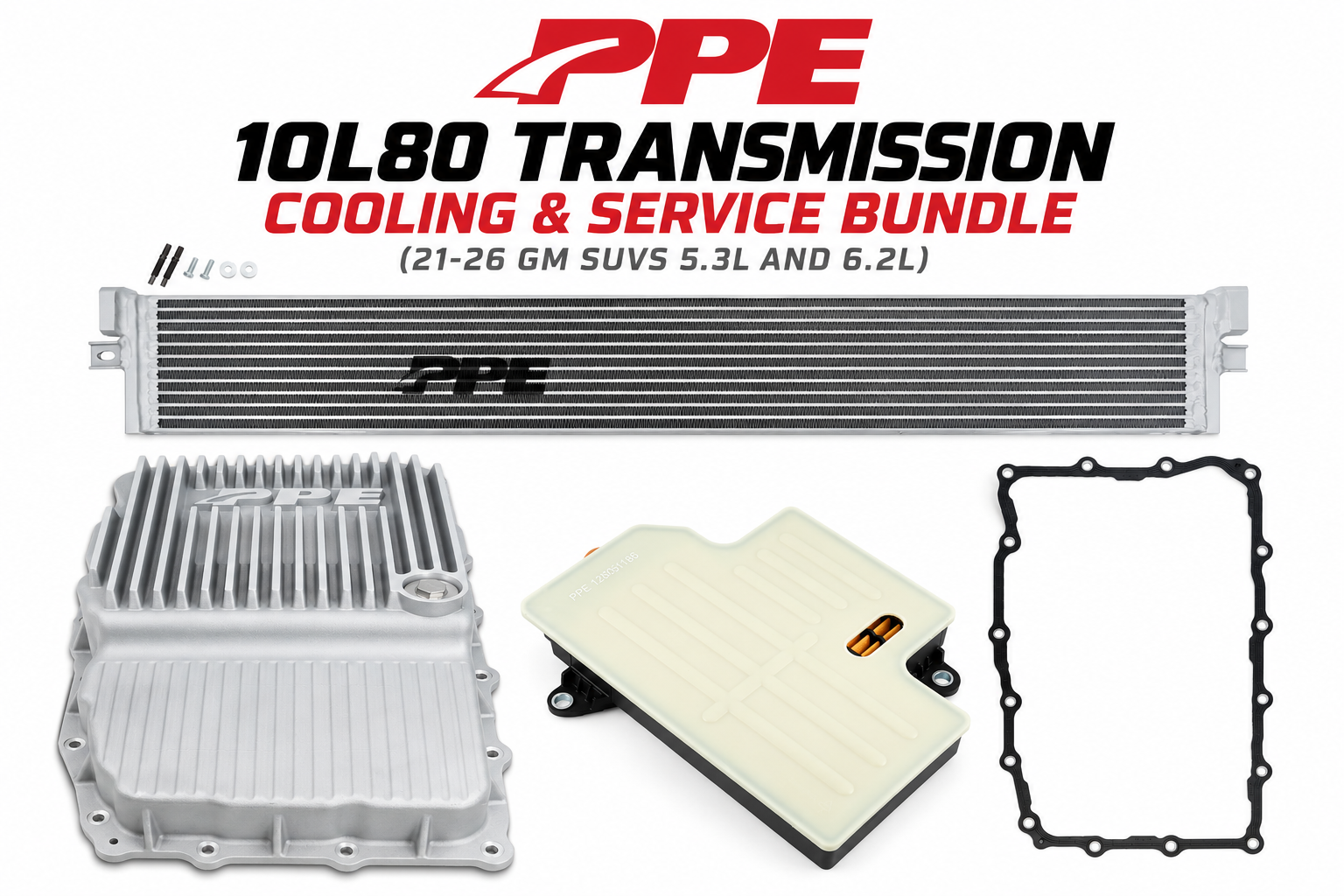

That is why we created the PPE 10L80 Transmission Cooling & Service Bundle.

The package includes:

• PPE 10L80 Bar & Plate Transmission Cooler
• PPE Deep Cast Aluminum 10L80 Transmission Pan
• PPE 10L60/10L80 Transmission Filter
• PPE 10L60/10L80 Transmission Pan Gasket
• FREE PPE T-Shirt

Rather than sourcing each component individually, the bundle combines the primary cooling and service components into one package.

Who Should Consider a 10L80 Cooling Upgrade?

A transmission cooling upgrade can make sense for many different types of GM SUV owners.

It is especially worth considering if you:

• Tow a boat, camper, or trailer
• Live in a hot climate
• Frequently drive in stop-and-go traffic
• Have added performance modifications
• Regularly drive the vehicle under heavy load
• Want increased transmission fluid capacity
• Plan to keep the vehicle long term
• Want easier future transmission servicing

You do not need to have a heavily modified SUV to benefit from additional cooling capacity.

Vehicle Fitment

The PPE 10L80 Transmission Cooling & Service Bundle is designed for applicable 2021-2026 GM full-size SUVs equipped with the 5.3L or 6.2L V8 and 10L80 10-speed automatic transmission, including:

• Chevrolet Tahoe
• Chevrolet Suburban
• GMC Yukon
• GMC Yukon XL
• Cadillac Escalade
• Cadillac Escalade ESV

Always verify your vehicle’s engine and transmission configuration before ordering.

Complete Your 10L80 Cooling Upgrade

For owners looking to improve transmission cooling, increase fluid capacity, and service the 10L80 at the same time, the PPE cooling and service package combines the key components into one solution.

Shop the PPE 10L80 Transmission Cooling & Service Bundle for 2021-2026 Tahoe, Suburban, Yukon, and Escalade 5.3L/6.2L models at PerformanceSUV.com
