PPE 10L80 Transmission Cooling & Service Bundle

Keep your GM 10-speed transmission cooler, better protected, and ready for demanding driving with the PPE 10L80 Transmission Cooling & Service Bundle.

This complete package combines PPE’s high-capacity bar-and-plate transmission cooler with its heavy-duty cast aluminum deep transmission pan, along with a fresh transmission filter and pan gasket. It’s an ideal upgrade for performance vehicles, towing applications, or owners looking to improve transmission cooling and serviceability.

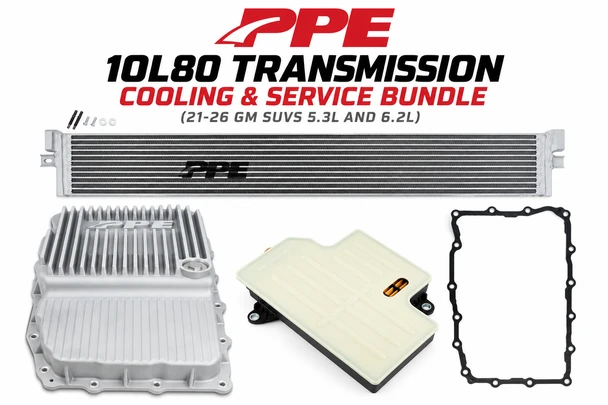

Bundle Includes

• PPE 10L80 Bar & Plate Transmission Cooler
• PPE Heavy-Duty Cast Aluminum Deep Transmission Pan
• PPE 10L60/10L80 Transmission Filter
• PPE 10L60/10L80 Transmission Pan Gasket

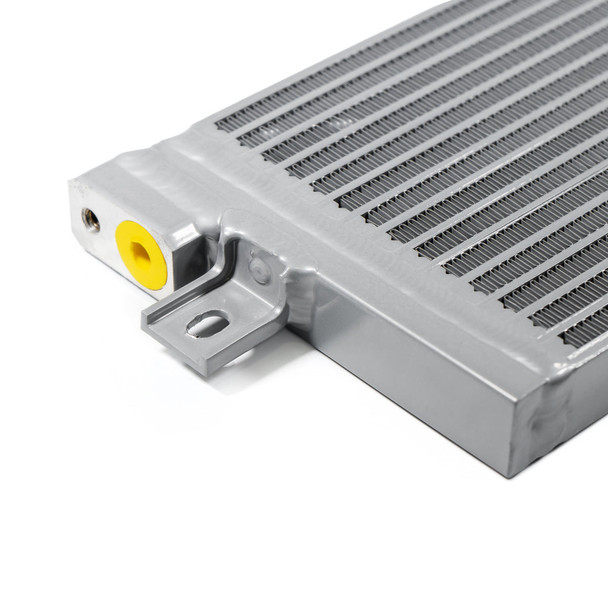

PPE Bar & Plate Transmission Cooler

The factory transmission cooler can become a limiting factor when towing, driving aggressively, or operating in high ambient temperatures. PPE’s upgraded cooler provides substantially more cooling capacity while retaining factory mounting locations for a straightforward bolt-on installation.

Features include:

• Massive 248 cubic-inch core volume
• Approximately 3.25X the core volume of the factory cooler
• 73% larger frontal area
• All-aluminum bar-and-plate construction
• Fully TIG-welded end tanks
• Up to a 45°F reduction in transmission temperatures
• Uses factory mounting locations

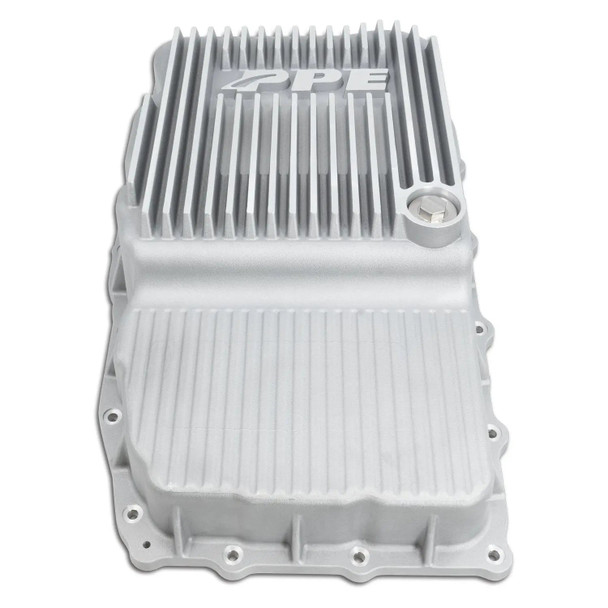

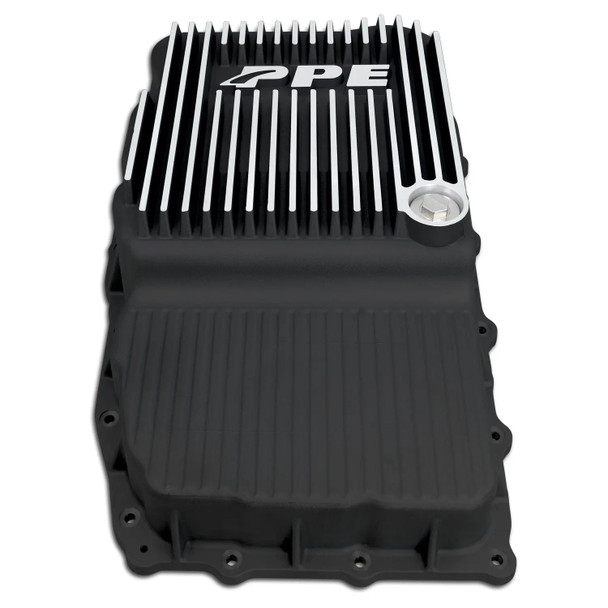

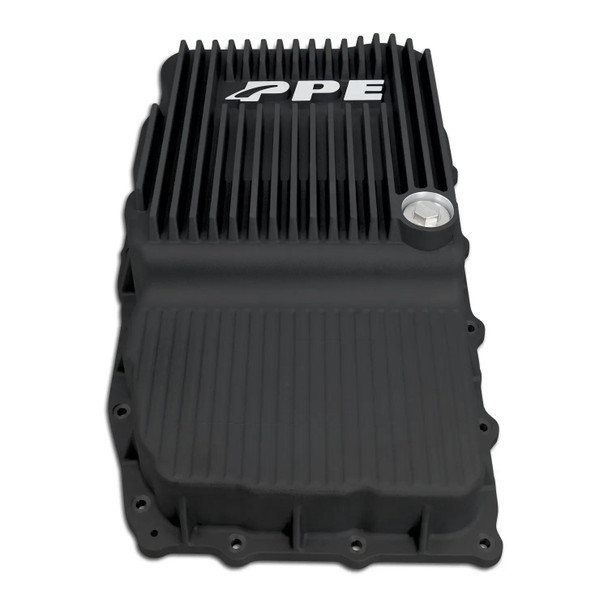

PPE Heavy-Duty Deep Transmission Pan

PPE’s cast aluminum transmission pan adds fluid capacity while also providing substantially more surface area for heat dissipation.

Features include:

• Adds approximately 2.5 quarts of transmission fluid capacity
• High-strength A356.0-T6 cast aluminum construction
• Large external cooling fins for increased heat dissipation
• Internal baffles help reduce fluid slosh and improve heat transfer
• Integrated magnetic stainless-steel drain plug
• 1/8-inch NPT port for optional temperature or pressure monitoring
• Compatible with OEM-style transmission filter and gasket
• Increased rigidity and impact resistance compared with the factory pan

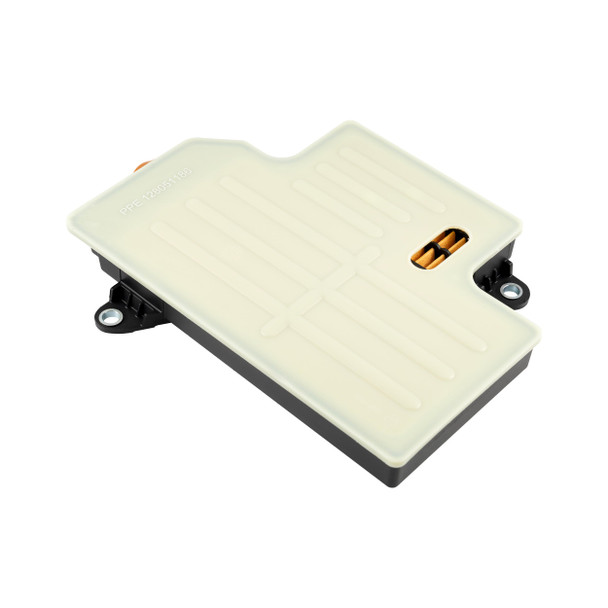

Fresh Filter & Gasket Included

Since installation of the deep pan requires opening the transmission, this bundle includes a new PPE-compatible transmission filter and compound pan gasket so the transmission can be serviced at the same time.

Why Upgrade?

Transmission heat is one of the biggest contributors to accelerated fluid degradation and transmission wear. Combining increased cooler capacity with additional transmission fluid volume helps the 10L80 better manage heat during towing, performance driving, and other demanding conditions.

Rather than installing individual upgrades separately, this bundle gives you the primary components needed to upgrade and service the transmission at the same time.

Vehicle Fitment

Designed around GM vehicles equipped with the 10L80 10-speed automatic transmission, including applicable:

• Chevrolet Tahoe
• Chevrolet Suburban
• GMC Yukon
• GMC Yukon XL
• Cadillac Escalade
• Cadillac Escalade ESV

Current complete bundle fitment: 5.3L and 6.2L equipped applications.
